Features

• Drag/drop to position products and show connections.
• Powerful, multi-function Cable tool for showing system interconnections.
• Rubber-Banding to keep cables connected to symbols as you move them.
• Smart connections, bridges and auto-reconnect to reduce drawing time while editing.
• Auto-incrementing Cable Labelling and comprehensive Attribute features.
• Smart Feather symbols to show Cables that continue from one drawing into another.
• Create your own Cable Presets and synch via the Cloud to all computers you use.
• Export Cable Schedules to Excel.
• Show/hide discrete circuit path layers.

New in 7.4

• High DPI Support: pin-sharp, eye-popping detail on high-res monitors, 4K, 5K, 8K and beyond.

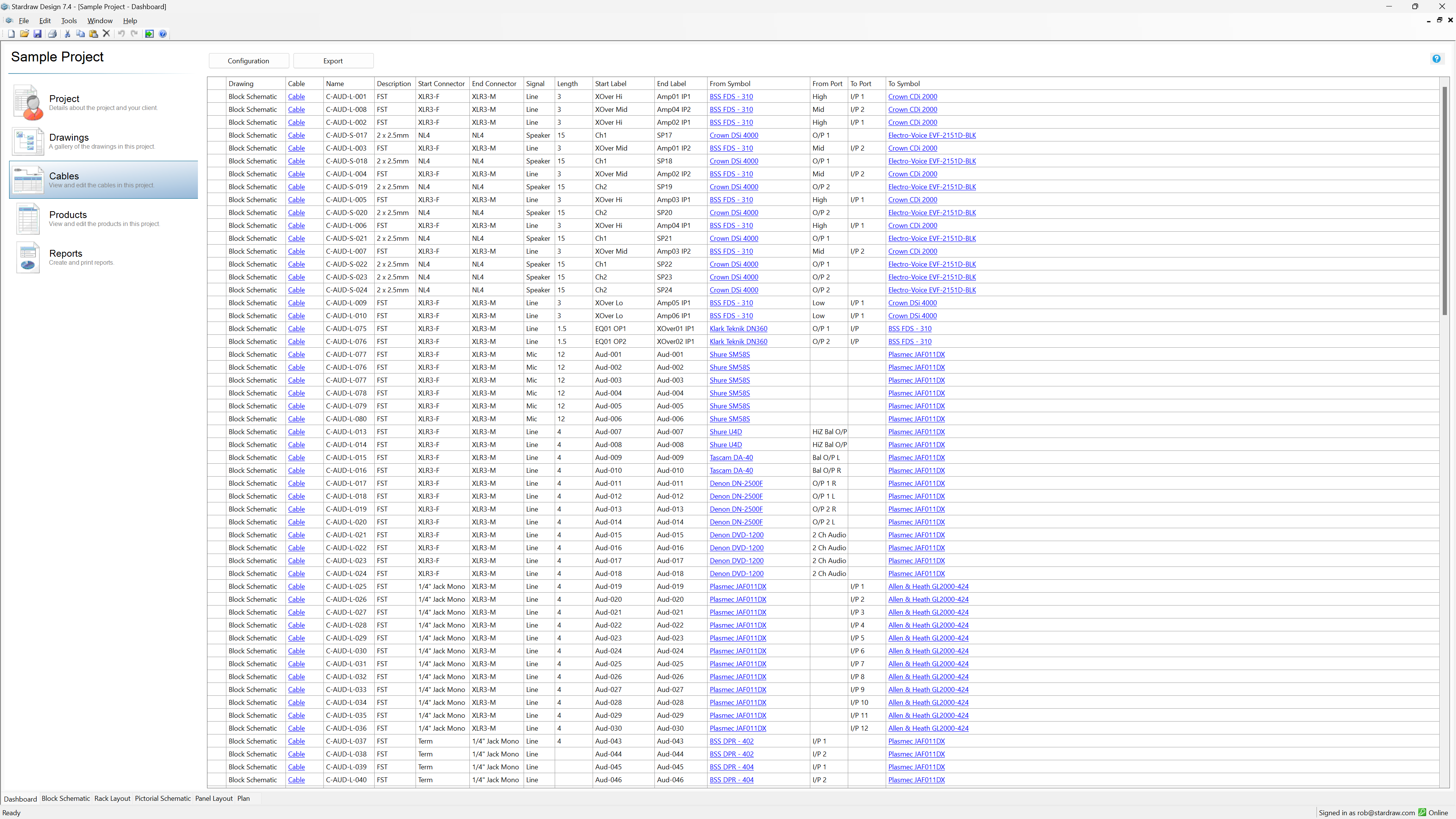

• Cables View: a powerful grid view of the Cables in your project.
• Customize visible columns.
• Sort and filter results.
• Enter and edit attribute values.
• Copy/paste and fill multiple cells with duplicate or incrementing values.
• Export as custom Cable Schedule.
• Auto-Labels; choose any Attribute(s) to appear as dynamic labels on symbols, globally and automatically.
• Cable Fillets: a global document setting to apply rounded corners to Cables.
• Clone Drawing: create a new drawing based on an existing one but with new product instances to create similar but distinct systems.

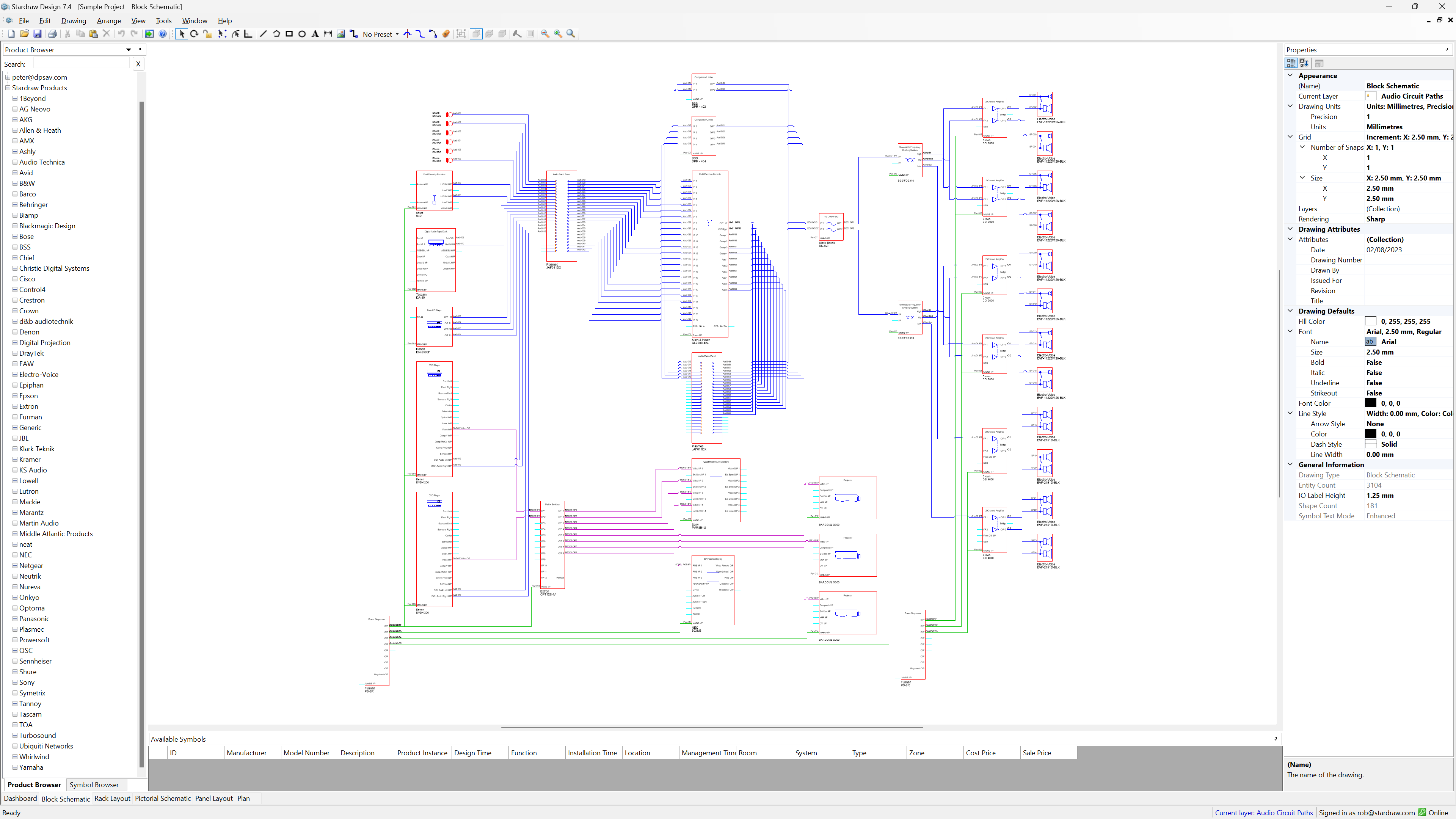

Symbols

Stylised and focussed on product inputs and outputs, Block Schematic symbols are designed to be technically accurate showing all IOs, labelled as per the real-world product.

Layers

Default layers for circuit paths, including Audio, Video, Control, Power and Lighting, plus user-definable layers.
