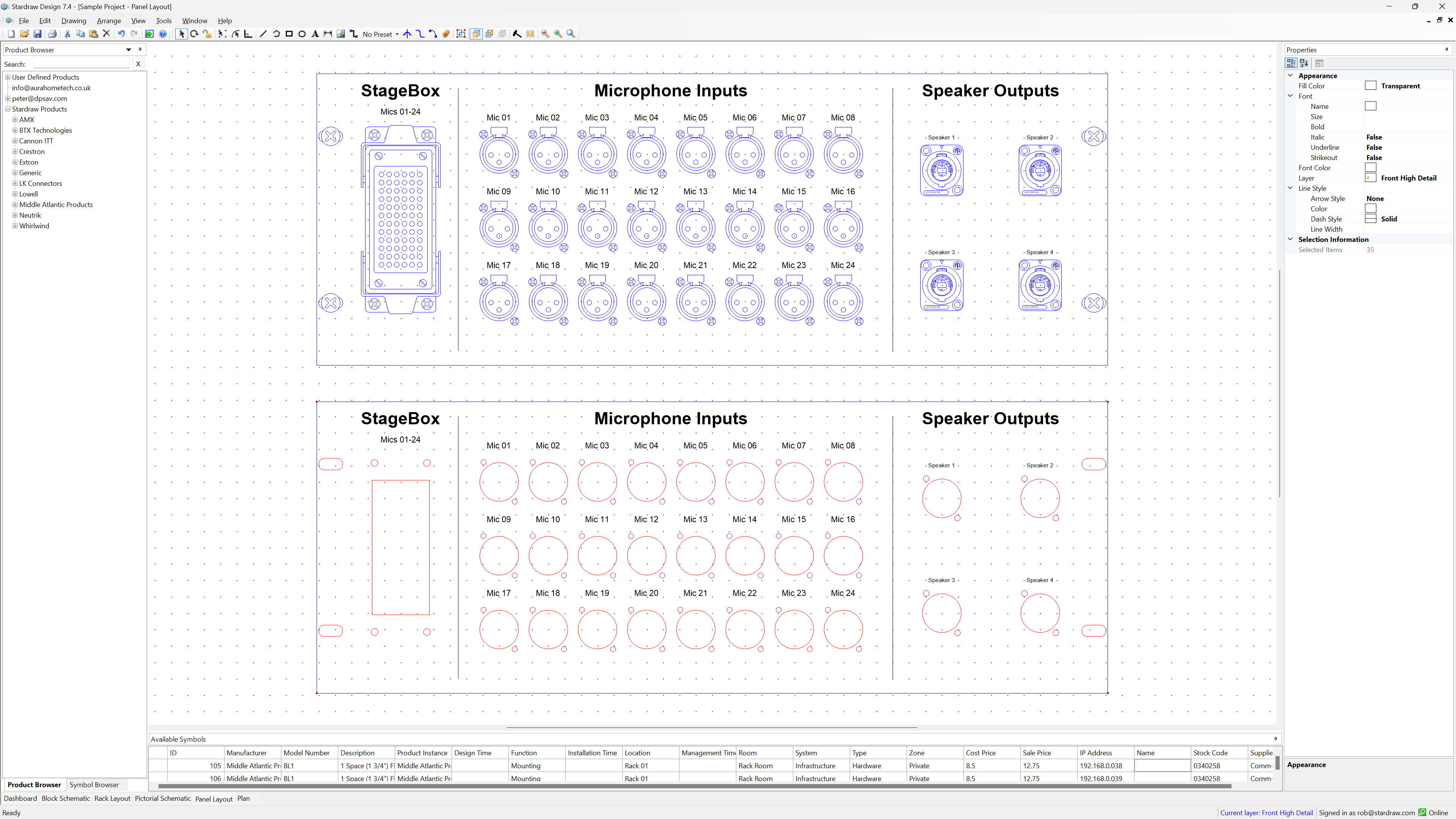

Features

• Drag/drop design of custom panels.
• Paste Array and Distribute tools to make it easy to lay out multiple connectors.
• Front, Rear and Metalwork views.
• Symbols at 1:1 scale - show dimensions directly on drawing.
• Easy to set custom engraving by connector.
• Panel and Connector clearance indicators to ensure optimized panel layouts.

New in 7.4

• High DPI Support: pin-sharp, eye-popping detail on high-res monitors, 4K, 5K, 8K and beyond.
• Clone Drawing: create new Panel Layouts based on an existing drawing but with new product instances to create similar but distinct systems.

Symbols

Panel Layout symbols are of connectors, rackmount blank panels and standard electrical panels. Connector symbols are highly detailed line art at 1:1 scale showing front view, cutout details for panel manufacture and, where data is available, rear details including pinouts.

Layers

Default layers for front, rear, metalwork (cutout and engraving) and clearance views.
