Features

• Drag/drop presentation design.
• Flexible Cable tool for single-line connections showing design intent, rather than engineering detail.
• Rubber-Banding to keep cables connected to symbols as you move them.
• Smart connections, bridges and auto-reconnect to reduce drawing time while editing.

New in 7.4

• High DPI Support: pin-sharp, eye-popping detail on high-res monitors, 4K, 5K, 8K and beyond.

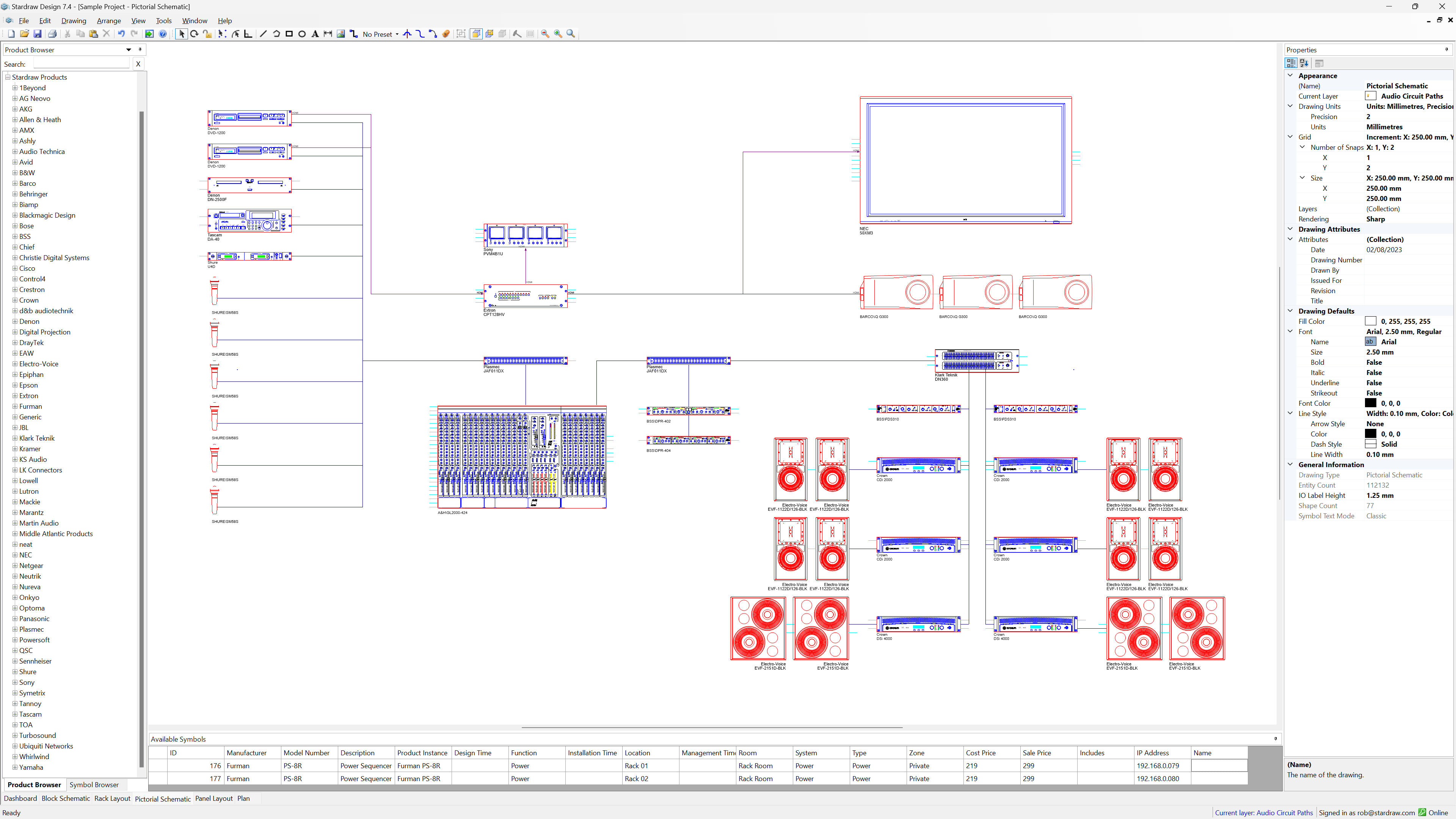

• Clone Drawing: create a new Pictorial Schematic based on an existing drawing but with new product instances to create similar but distinct systems.

Symbols

Detailed front and rear views (where data is available). Not at 1:1 scale; symbols are designed for presentation, not construction drawings.

Layers

Default layers for front and rear views, and circuit paths including Audio, Video, Lighting, Power and Control.
